InControl 1050InControl 1050

InControl 1050

REF 14709

Independent measuring device for control and evaluation of CO2, temperature and O2

The independent measuring device is used for control and evaluation and can be connected directly to an incubator.

InControl_english_5_012017.pdf

Accurate measuring of CO2, temperature and optional O2
Single or continuous measurement in arbitrary intervals
Measurement and documentation of multiple incubators
Documentation of measurements with date, time and incubator number
Easy menu navigation
Data-Download via USB; PC software DataVISUAL`09 incl.
Continuous operation by Li-Ion battery or mains adapter possible

CasePlastic (ABS)
CO2 measurementDual beam infrared sensor
Range: 0 - 10 % CO2
Display definition: 0.1 % CO2
Accuracy:
    • 0 - 6 % CO2 ± 0.2 % CO2
    • 6 % - 10 % CO2 ± 0.3 % CO2
Sample volume per measurement (2 min.): approx. 0.8 l
Temperature measurementPlatinum temperature sensor PT1000
Range: 0 - 100 °C
Display definition: 0.1 °C
Accuracy:
    • 20 °C - 50 °C ± 0.2 °C
    • 50 °C - 100 °C ± 0.3 °C
O2 measurementGalvanic sensor
Range: 0 - 100 % O2
Display definition: 0.1 % O2
O2 sensor not included
Data logger

Recording of measurement logging in arbitrary intervals
Output of measurements via:
    • backlit LCD
    • PC software Data Visual’09 (via USB data cable)
Interval for data logging: 15 - 120 min., adjustable in steps of 5 min.
Storage of max. 1008 measurements with date and time
Power supplyRechargeable Li-Ion battery
Power supply 100 – 240 V AC, 5 V DC 1.5 A
Operation timeUse of rechargeable battery approx. 4 h
Time to recharge battery approx. 4 h

An O2 sensor can be purchased optionally for the InControl

REF 10556



Sensor for O2 measurement

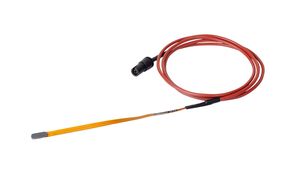

The temperature of benchtop incubators can be measured with an optional flat temperature sensor

REF 15064



Flat tape sensor PT1000 for temperature measurement inside Labo C-Top or other benchtop incubators



The temperature of heating plates can be measured with the blue, round surface sensor

REF 10537



Surface sensor for temperature measurement



InControl including transport case
Mains adapter
Tubing, adapter and condensation trap
PC software: DataVISUAL'09 (on USB stick)
USB data cable
